Boosting mobile signal for all four UK networks in a large hospital in London

The challenge

Central Middlesex Hospital needed to boost the mobile signal for all four UK networks in the BECAD building. It was poorly affecting the hospital's operation and the staff's satisfaction, and the hospital constantly received complaints from its visitors. BECAD has an area of around 30,000 sqm over 3 floors.

Results

UCtel installed CEL-FI QUATRA systems with DAS throughout the BECAD building to boost the mobile signal for Vodafone, O2, 3 (Three), and EE, achieving an excellent improvement in signal on all four networks. It positively affected the staff and visitors' satisfaction.

Summary

Central Middlesex Hospital needed to boost the mobile signal for all four UK networks in the BECAD ( Brent Emergency Care and Diagnostic Centre) building. UCtel installed CEL-FI QUATRA systems with Distributed Antennas System (DAS) to boost the mobile signal for Vodafone, O2, 3 (Three), and EE mobile networks achieving an excellent improvement in the signal.

The Challenge

Central Middlesex Hospital is located in the center of the Park Royal business estate, on the border of two London boroughs, Brent and Ealing. It is managed by the London North West University Healthcare NHS Trust. The hospital had a poor mobile signal for all four UK networks.

There was a need to boost the mobile signal for all four networks throughout the BECAD building, which has an area of around 30,000sqm over 3 floors.

The poor signal was negatively affecting the hospital's operation and the staff's satisfaction, and the hospital constantly received complaints from its visitors.

The picture below shows Brent Emergency Care and Diagnostic Centre of the hospital:

JwYyH7eyr6d9XeLs3wfHIu51NIoSU2iexTZmkGLjjn8Su8IQblRbZ6CaJiktmKC1RhEmmtUiqsWna 4idYgbpIVHynAWP51zrklUeU739jtYx vwfEyaI5lw4oQDb4yo90nOTwRG4pQC9o9SsUXSFBI

The Solution

UCtel installed CEL-FI QUATRA systems with a Distributed Antenna System (DAS) throughout the BECAD building to boost Vodafone, O2, 3 (Three), and EE mobile signal.

The Installation

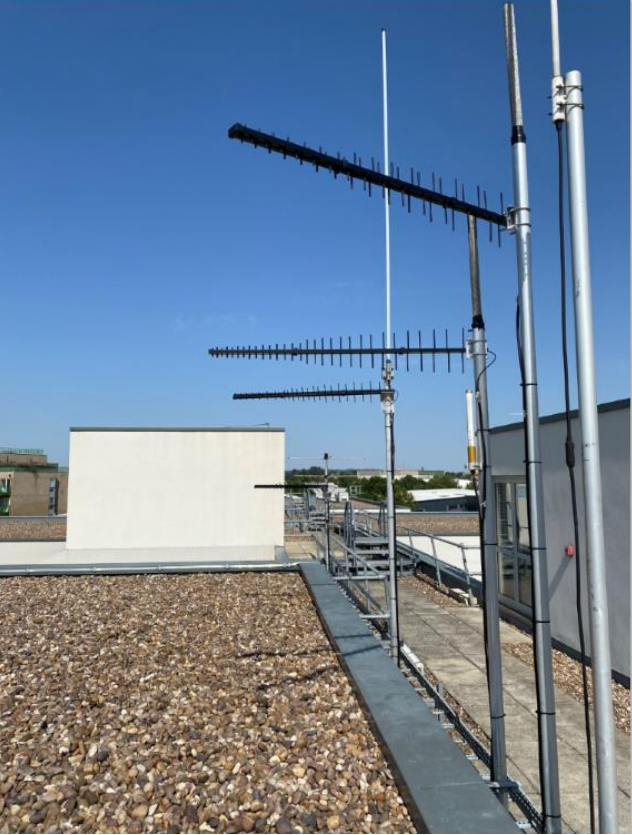

The installation comprises CEL-FI QUATRA Network Units (NU), Coverage Units (CU), and Passive DAS segments. CEL-FI LPDA-R Antennas, which are designed to reduce out-of-band noise and improve overall signal quality, were used for the donor antennas.

UEy32DHQc8wpbCEVRK8xi6YFOlTt4e OkepijynZT7c rqvaG5dBSWLAguj9TMWAtlgOIXyRUOKH j8bnEWRCSJEDban0jw5d54IURMNvOKsJS5R31O8uqVdbiSgrTb8INnAtYZDya1Wqwk7 P8MKs

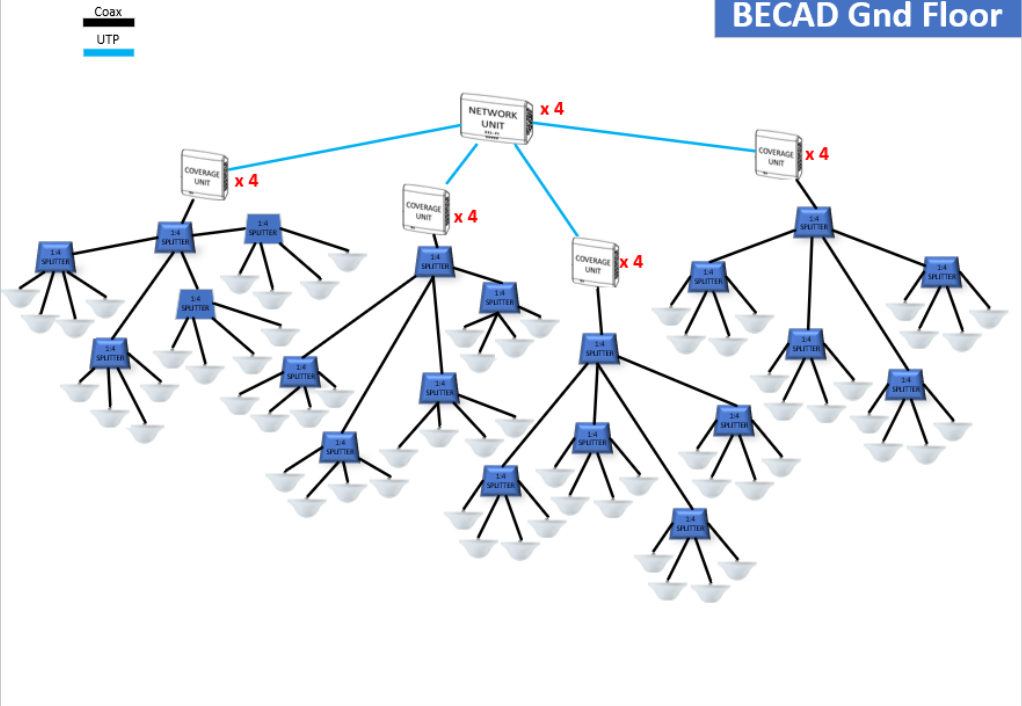

The schematic below shows the system architecture for one floor.

xC 2OT5JRki8QDhKnC5EqwseHs wjHCwn64VmDD0 DPhCM6Ne00sPbb52XPZNcJo3d3WrpfUJdsi5NhDMVAAcYiaN8HZkeBCGq8V3QhLK1kLj5Dkuc3UusjBwRVcez5RtJ8e9rqYgoFLS iaCijlrAk

The Results

UCtel installed the system with minimal disruption to the hospital’s operations. The solution positively affected the hospital’s staff and visitors’ satisfaction and achieved the objectives of the project.

The images below show the pre-install and post-install Vodafone network signal on one floor of the BECAD building. Other networks had nearly the same signal quality improvement.

BECAD Ground floor pre-install and post-install VF signal:

UCtel provides proactive management of the solution together with onsite support to ensure that the system remains optimised.
